What Are High Performance Solenoids and How Do They Work?

Your machine works perfectly at first, but then performance drops after it warms up. This inconsistency is frustrating and can halt production, making you question your component choices.

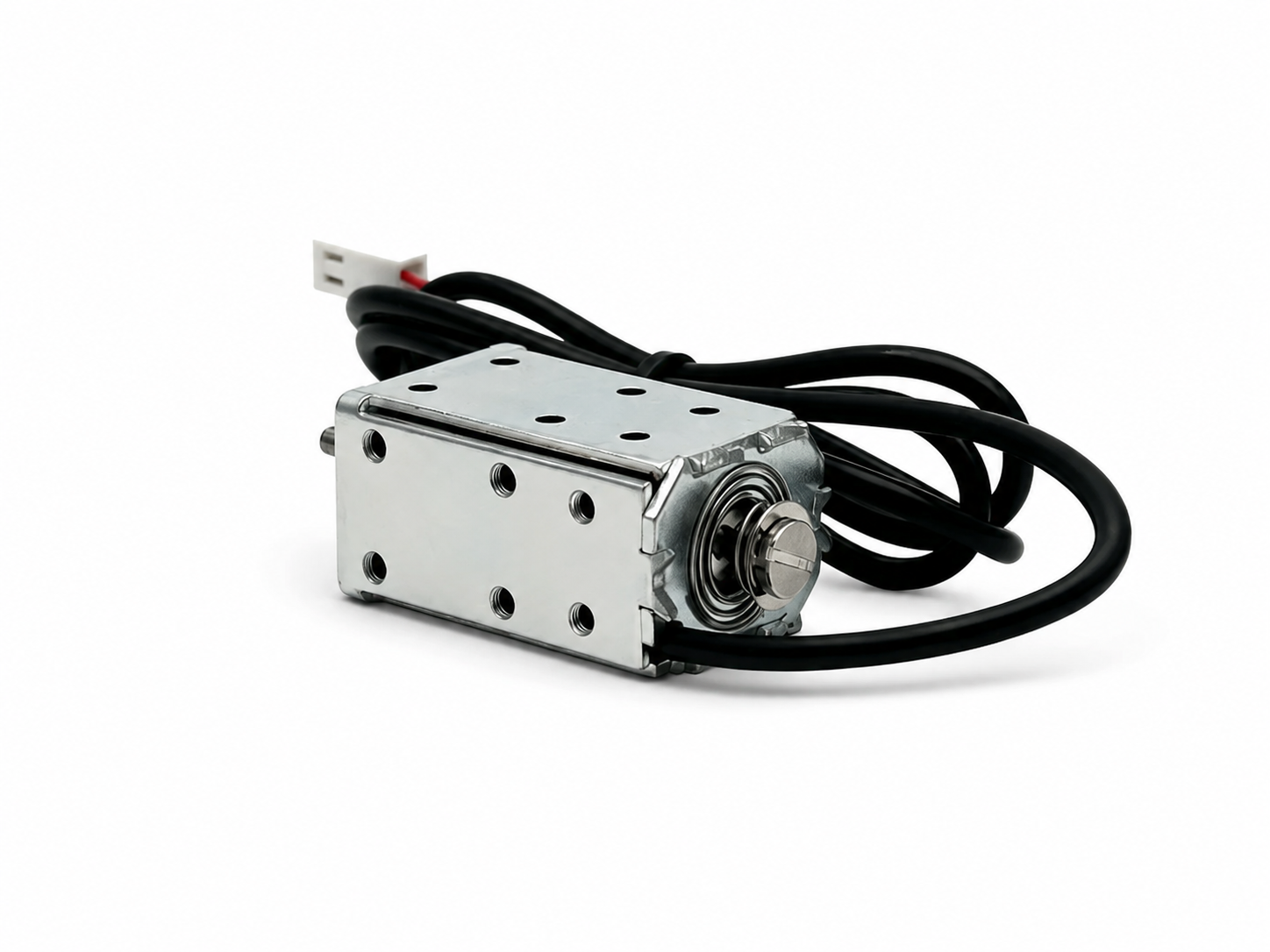

A high-performance solenoid is designed for stability, not just peak power. It uses superior materials and construction to maintain consistent magnetic force and response time even when it gets hot. This ensures reliable operation in demanding, real-world conditions where standard solenoids would fail.

When people hear "high performance," they often think it just means more expensive or more powerful. But in my 20 years of manufacturing solenoid coils, I've learned that's not the whole story. True high performance is about delivering the right amount of force and speed, reliably, within the physical limits of your system. It's about a solenoid that performs just as well in its first minute of operation as it does in its eighth hour. Let's explore what truly sets these components apart and why they are critical for so many modern applications.

What Makes a Solenoid “High Performance”?

Your standard solenoid loses force as it heats up, causing unpredictable behavior.¹ This can lead to system errors and downtime, a problem you can't afford in a competitive market.

A solenoid becomes "high performance" through its ability to remain stable under thermal stress. This is achieved with superior heat-resistant materials for the coil wire, precise and uniform winding techniques, and an optimized design for better heat dissipation. It's about consistency, not just raw power.

When we talk about performance, the key is stability. A standard coil gets hot, and its magnetic force starts to drop. A high-performance coil, on the other hand, is designed to maintain its force even after heating up. This isn't magic; it's a result of deliberate engineering choices. It depends on the temperature rating of the materials, how evenly the wire is wound, and whether heat dissipation was part of the initial design. The goal of a high-performance solenoid isn't to create the strongest possible magnetic field in a lab. The goal is to deliver consistent, predictable force within a specific temperature range and a limited physical space. It’s about reliability when it matters most—during actual operation.

Key Differentiators

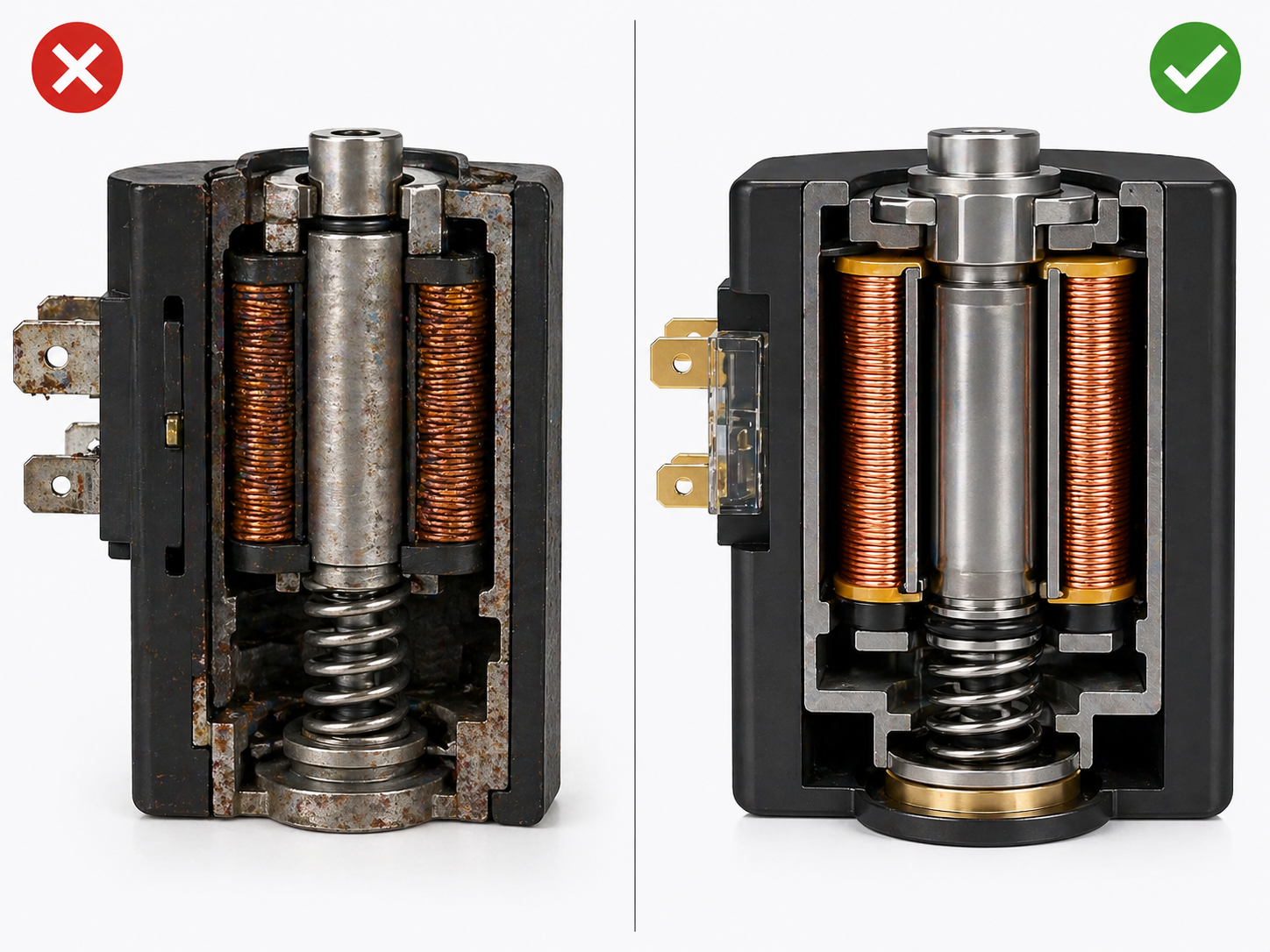

How Do High Performance Solenoids Work Compared to Standard Solenoids?

You assume all solenoids function the same way. But a standard one can fail you when the pressure is on, losing power as it heats up and causing your equipment to malfunction.

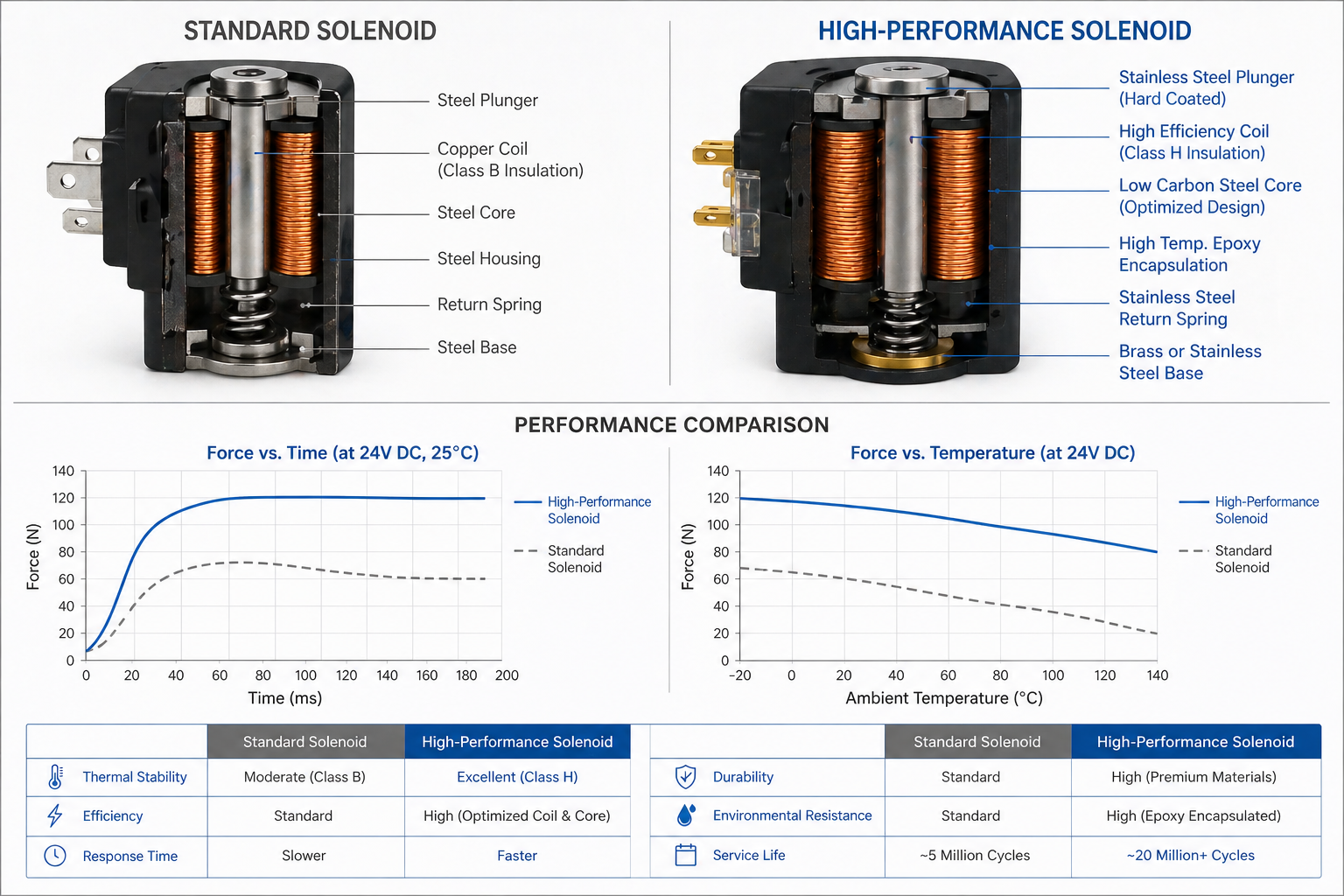

The key difference is how they handle heat. A standard solenoid's electrical resistance increases with temperature, reducing current and weakening the magnetic field.³ A high-performance solenoid uses materials and designs that minimize this effect, ensuring consistent force and actuation speed even under continuous operation.

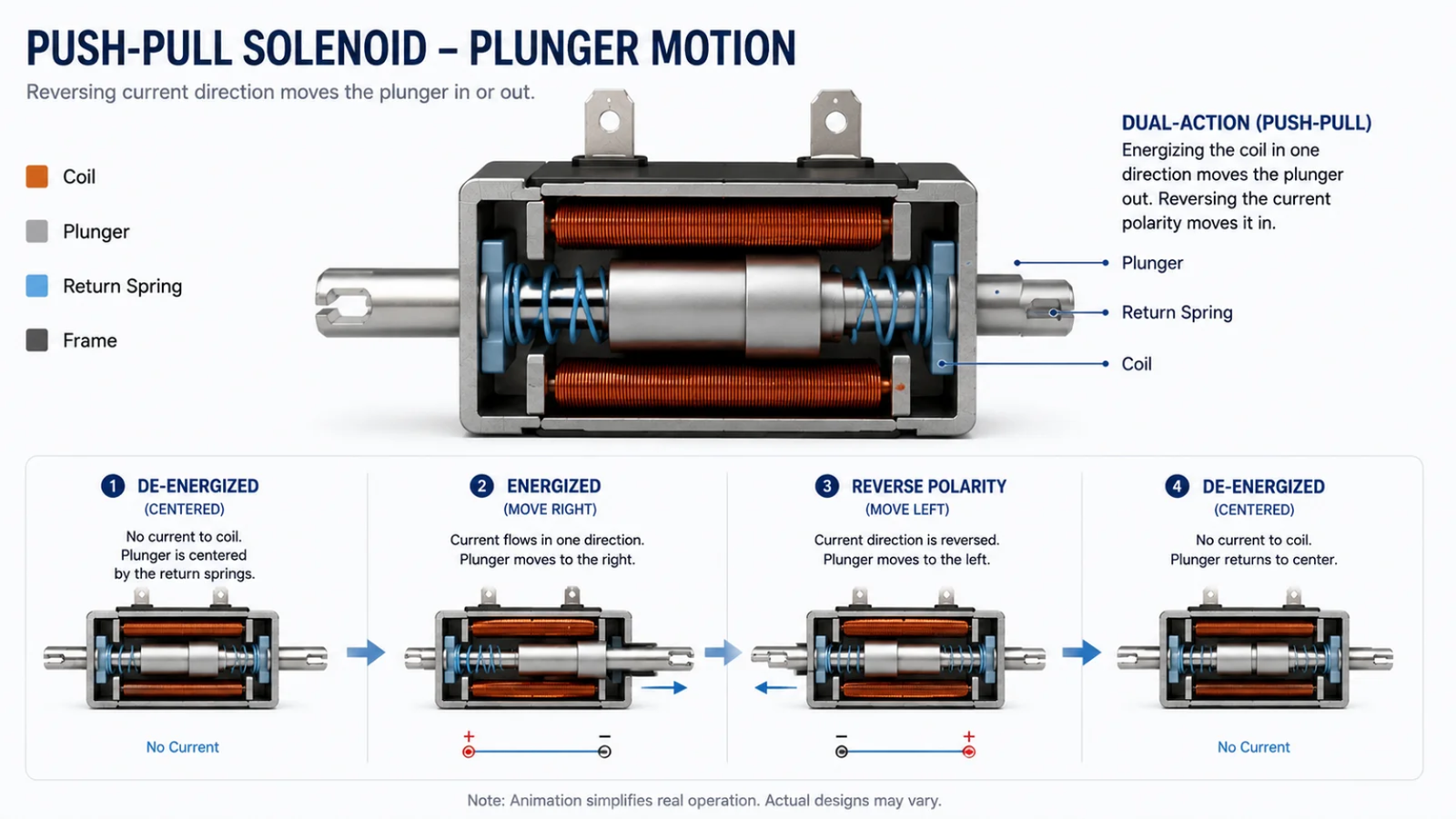

At their core, all solenoids work on the same principle: an electric current runs through a coil of wire, creating a magnetic field that moves a plunger. The difference is in the details. Think of a standard solenoid like a sprinter. It's very fast and powerful for a short burst, but it gets tired quickly. As it operates, the coil generates heat. This heat increases the copper wire's electrical resistance. According to Ohm's law (V=IR), if voltage (V) stays the same and resistance (R) goes up, the current (I) must go down. Since the magnetic force is directly proportional to the current, less current means less force. Your solenoid gets weaker.

A high-performance solenoid is more like a marathon runner. It's built for endurance. We achieve this in a few ways. First, we use a higher grade of magnet wire with insulation that can withstand much higher temperatures without breaking down. Second, our winding is more precise, eliminating gaps that trap heat. Third, we design the bobbin and plastic overmolding to act as a heat sink, actively pulling heat away from the coil. The result is a solenoid that can run hotter for longer without a significant drop in performance.

What Applications Require High Performance Solenoids?

You've installed a new solenoid in your high-speed sorting machine. But after an hour of running, the machine's timing is off, causing errors and slowing down the entire production line.

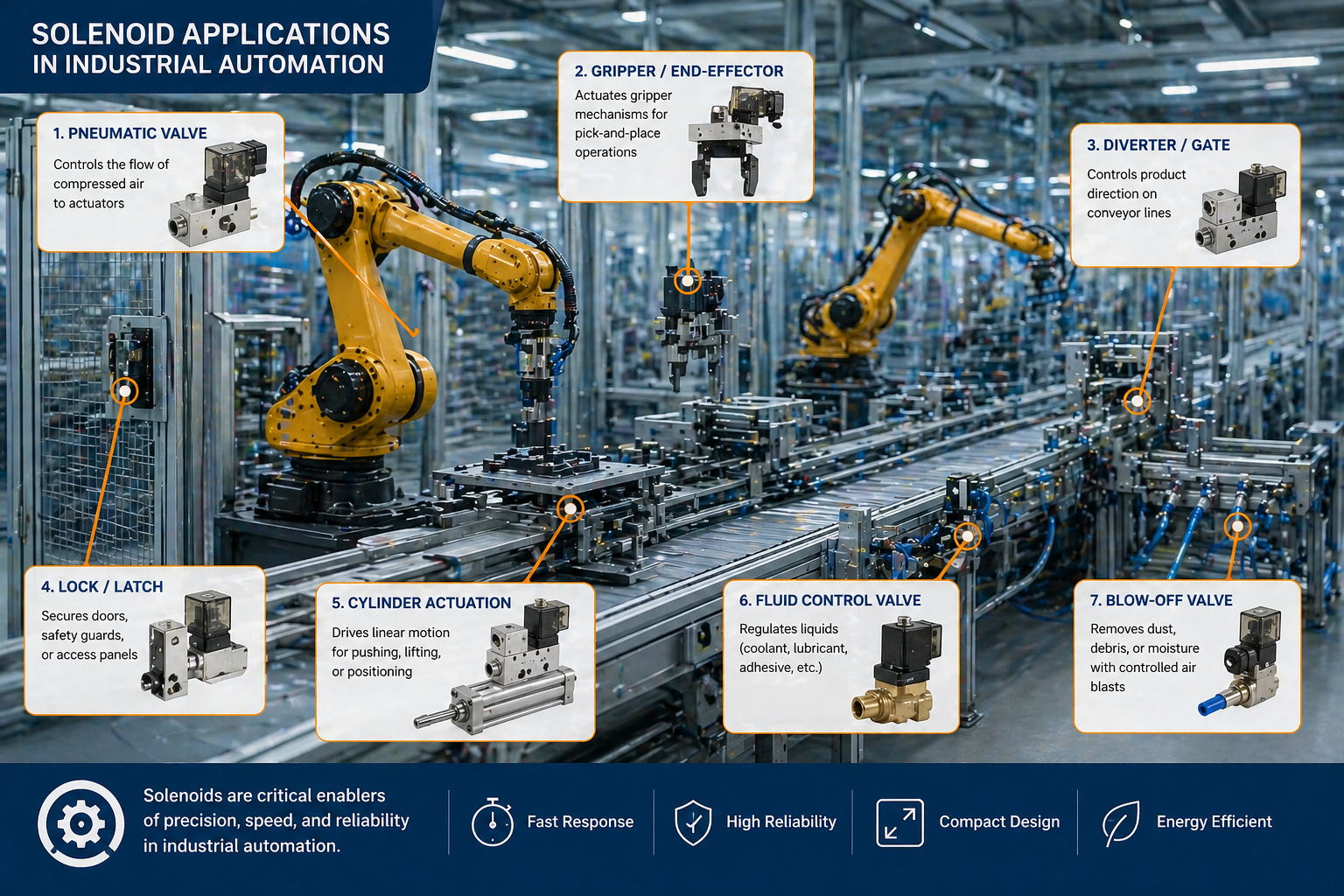

High-performance solenoids are essential for any application demanding consistency under stress.⁴ This includes industrial automation with high cycle rates, critical medical devices where failure is not an option, and automotive systems that operate in harsh temperature environments. They ensure reliability and precision.

I remember a specific case with a European client in the automation industry. They had a machine that needed to operate at a very high frequency with extremely fast response times. Their original design used a standard solenoid. For the first hour of operation, everything worked perfectly. But as the machine continued to run, the solenoid would heat up, and its action would become noticeably slower. This threw off the entire rhythm of the machine, and production efficiency dropped.

They came to us with this problem. We didn't just give them a bigger, more powerful solenoid. Instead, we analyzed the real-world operating conditions. We replaced the standard enameled wire with one that had a higher temperature rating. We adjusted the winding density for better thermal properties and redesigned the plastic injection molding structure to improve heat dissipation. The peak magnetic force of our new coil was the same as the old one. However, its stability at high frequencies was dramatically better. With our custom high-performance coil, the machine could run all day, and its timing remained perfect. That’s what "high performance" means: stable and reliable under the exact conditions of the job.

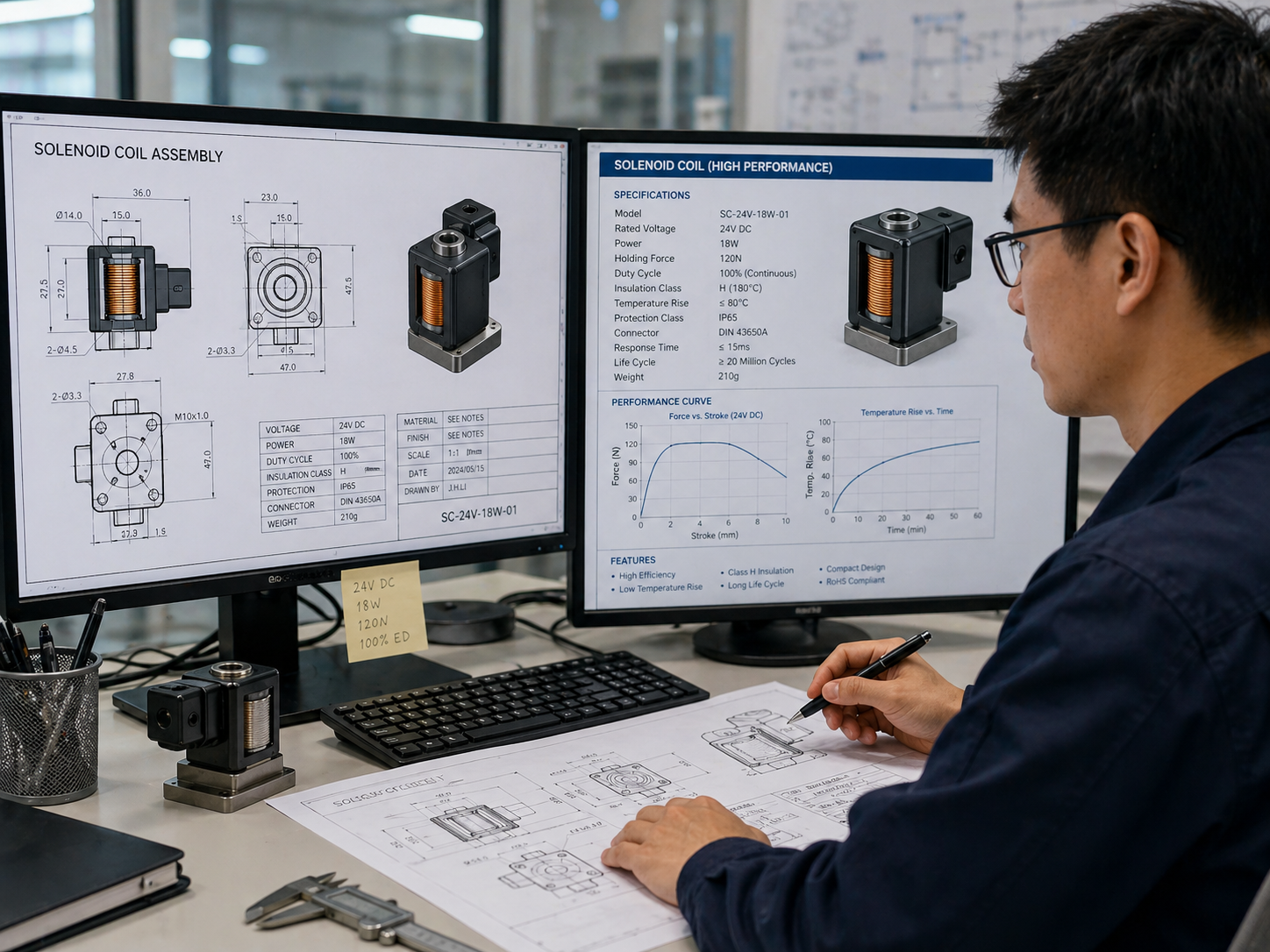

How to Choose the Right High Performance Solenoid for Your System?

You know you need a reliable solenoid, but the specifications are overwhelming. Choosing the wrong one means you could overspend on a part you don't need or, worse, select one that fails.

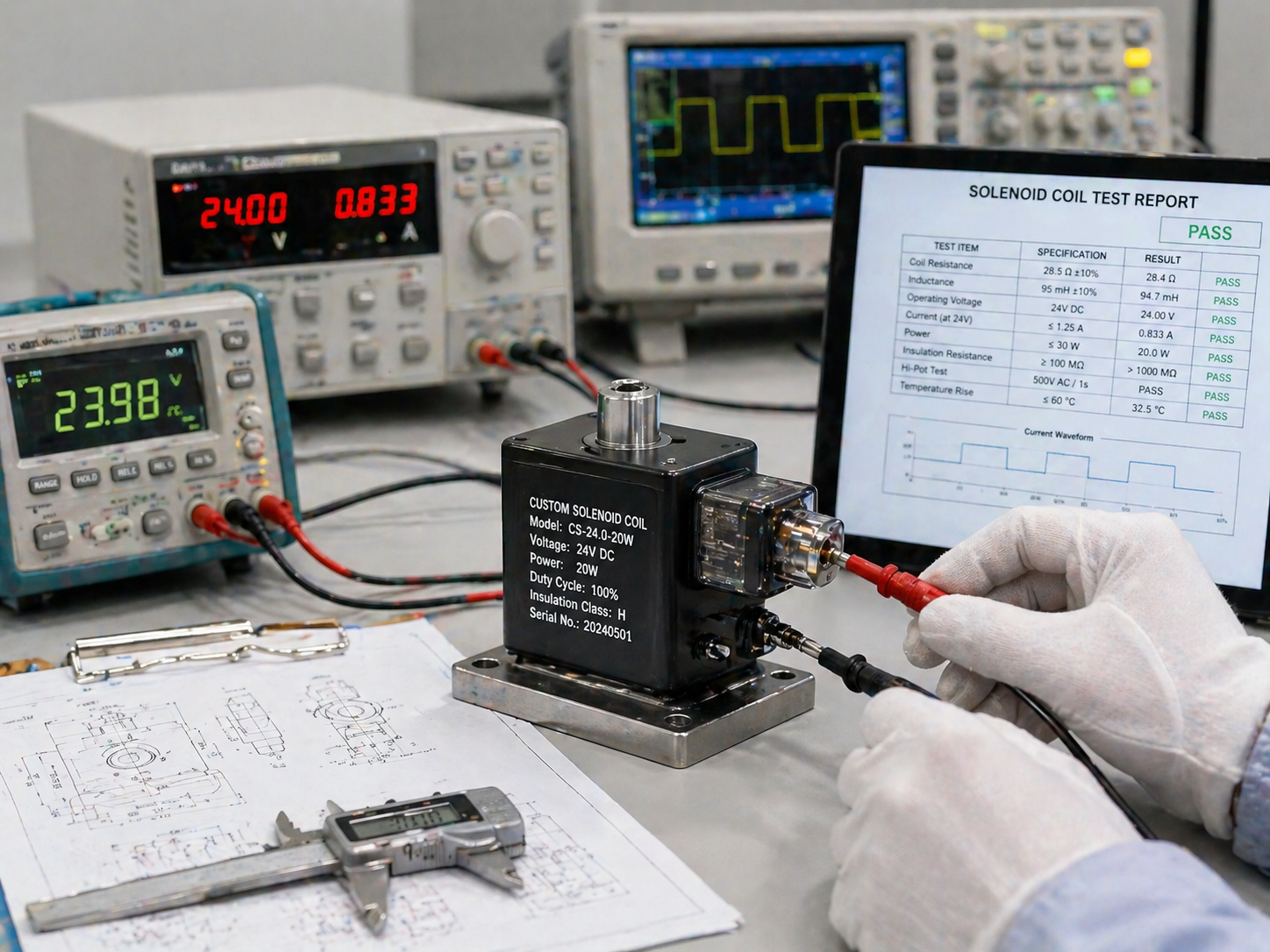

To choose correctly, first define your application's non-negotiable requirements: operating temperature, duty cycle, force, and space constraints. Then, partner with a manufacturer who can provide test data and customize a solution. The right part is the one that fits your system perfectly.

Selecting the right solenoid isn't about finding the one with the highest numbers on a datasheet. It’s about a careful matching process between the component and your application. A part that is "high performance" for a medical ventilator might be completely wrong for an industrial press. The first step is to stop looking at catalogs and start looking at your own system. You need to define the exact problem you are trying to solve. What is the absolute maximum temperature the component will reach? Will it be energized 100% of the time (100% duty cycle) or only in short bursts? How much force does it truly need to do its job reliably? How much physical space do you have?

Once you have these answers, you can start a conversation with a manufacturer. A good partner won't just sell you a part; they will work with you. At SolenElec, we often ask for a deep dive into the application. We want to understand the entire system so we can design a coil that delivers exactly what is needed—no more, no less. This ensures you get the performance and stability required without paying for capabilities you'll never use.

Solenoid Selection Checklist

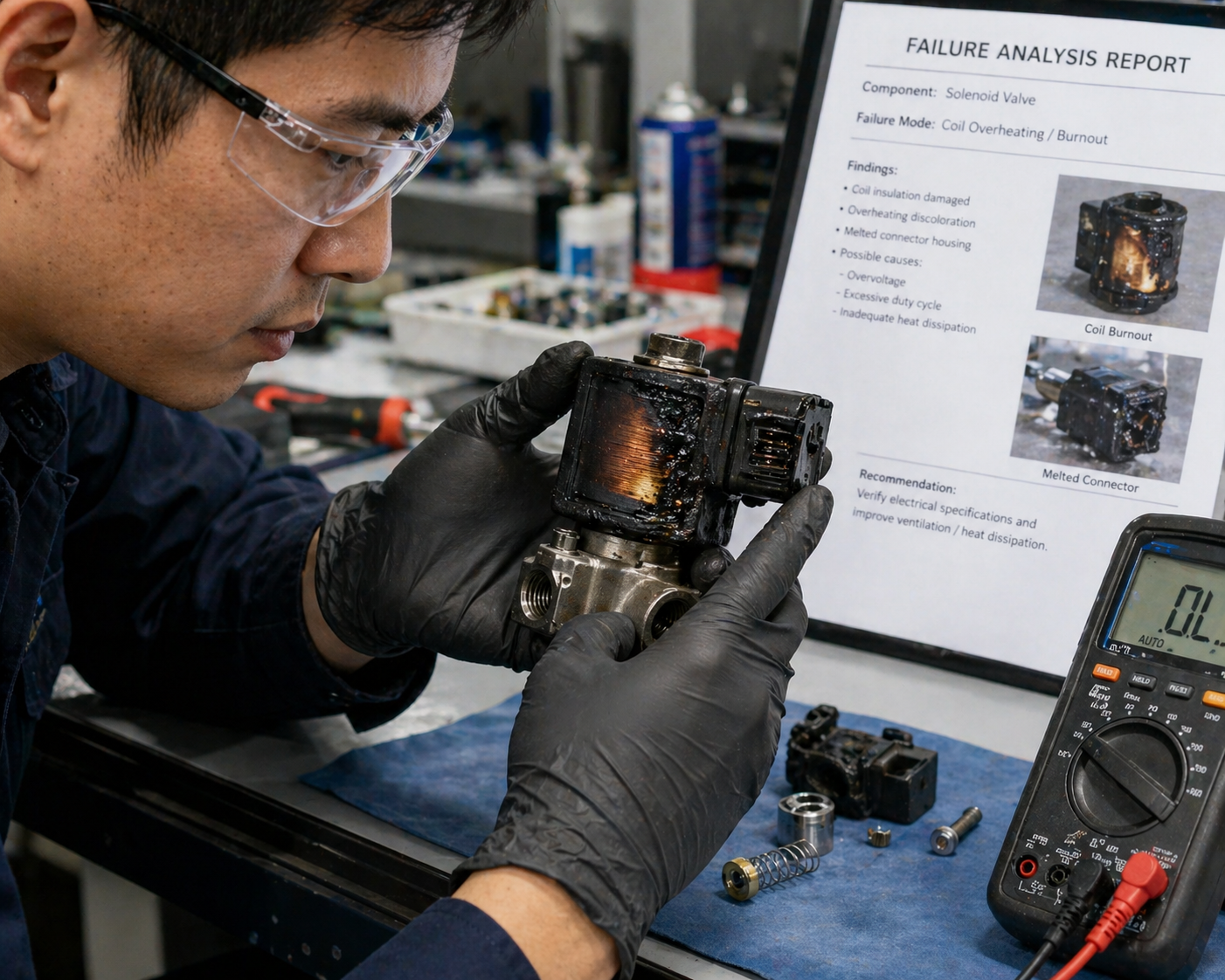

What Causes Failure in High Performance Solenoids and How to Prevent It?

Your premium, high-performance solenoid just failed unexpectedly. Now your machine is down, and you're left wondering why a component designed for reliability didn't last.

The most common failure points are overheating, improper voltage, and mechanical wear. You can prevent these by ensuring adequate cooling, providing a stable power supply, and selecting a solenoid rated for the mechanical demands and lifecycle of your specific application.

Even the best components can fail if they are used improperly. The most common enemy of any solenoid, high-performance or not, is heat. If a solenoid is operated above its maximum temperature rating, the enamel insulation on the copper wire will break down. This causes a short circuit between the windings, and the coil burns out. The solution is prevention: either reduce the duty cycle, improve the airflow around the component, or select a solenoid with a higher temperature class from the start.

The second biggest issue is incorrect voltage. Supplying too much voltage (over-voltage) will force too much current through the coil.⁶ This creates excessive heat very quickly and leads to thermal failure. On the other hand, supplying too little voltage (under-voltage) will result in a weak magnetic field. The plunger may not actuate fully or may buzz, which can also lead to eventual failure. The fix is simple: use a regulated power supply that delivers the specified voltage consistently. Finally, every solenoid has a mechanical lifespan. After millions of cycles, parts can wear out.⁷ It's crucial to choose a component that is rated for the lifecycle of your machine.

Conclusion

High-performance solenoids are not about being the strongest, but about being the most stable.⁸ They ensure your equipment works reliably under real-world heat and stress, preventing costly downtime and inconsistency.
